Absolute Machine Tools is once again the exclusive importer/distributor for QuickTECH multi-spindle multi-axis mill/turn centers.  Two videos featuring the demo plus additional product videos are below under each specific model heading.  The i-60 is now set up to run demos in Absolute’s Mason, Ohio facility.

The ergonomics and style of these machines are just as impressive as larger higher-end machine tools but in a compact footprint with phenomenal pricing advantage.

QuickTECH Specifications:  http://absolutemachine.com/brand/quicktech/

QuickTECH S32 ATM

QuickTECH’s S32 ATM is a compact CNC mill/turn center made specifically for small complex parts and features 9 axes, 2 turning spindles, B-axis milling spindle and a 24 tool arm-type automatic tool changer.  The sub-spindle is equipped with 6 gang type fixed turning tools giving this machine a total of 30 tools.  The sub-spindle moves in X, Y and Z and has the ability to move in the X axis above and below the centerline, moving out of the way of the B axis milling spindle so it has full tilting capabilities and greatly reducing physical machine size.   The S32 ATM’s B axis has a working range of 190° (± 95° from vertical).  The HSK-40T milling spindle provides 10,000 RPMs.  Front end (main spindle) and backend (sub-spindle) simultaneous cutting maximizes productivity in small parts turning and angular milling in a cost-effective compact design.

QuickTECH T8 HYBRID

https://youtu.be/PpLM8VGJsxc?list=PLTA62J_epscrLMmY_d4Pudhun-idRCvAr

QuickTECH’s T8 HYBRID is a 9 axis twin spindle CNC mill/turn center with 2 turning spindles, 2 live milling spindles, B axis, and a minimum capacity of 38 tools.  This machine’s Flexible Duo System allows 2 programs to run simultaneously saving up to 45% cycle time.  The main spindle employs a 3 axis BMT power turret equipped with 12 fixed and live tooling stations, 65mm bar capacity, and 80mm of true linear Y axis travel.  The T8 HYBRID’s sub-spindle features a 4 axis gang slide employing 26 tools (5 external, 9 internal and 12 live tools), 32mm bar capacity, and an impressive full flexible 360° B axis.

QuickTECH Twin

https://youtu.be/ivyElLi1dL8?list=PLTA62J_epscrLMmY_d4Pudhun-idRCvAr

QuickTECH’s i-42 Twin and i-60 Twin twin spindle CNC mill/turn centers are unique bar processing machines that provide complete parts machining including all complex milling functions.  These machines feature 7 total axes, 2 turning spindles, 1 milling spindle, and a 360° B axis serving both twin spindles.  While most small lathes have a turret with 12 tools, the tool post features 9 O.D. turning tools, 9 I.D. turning tools and 12 live tools mounted on the B axis.  A 4 axis (X, Y, Z and B) gang type vertical tool post is shared between each C axis spindle.  The main spindle has 42 mm (i-42) or 60mm (i-60) bar capacity and the sub-spindle has 30mm bar capacity on both models.

QuickTECH Ultimate

https://youtu.be/zqycoq8psNo?list=PLTA62J_epscrLMmY_d4Pudhun-idRCvAr

(Demo Clip 1)  https://youtu.be/5nIabG9NTjA?list=PLTA62J_epscrLMmY_d4Pudhun-idRCvAr

(Demo Clip 2) https://youtu.be/HhGSQGDCiQc?list=PLTA62J_epscrLMmY_d4Pudhun-idRCvAr

QuickTECH’s i-42 and i-60 Ultimate twin spindle CNC machine tools are compact, high precision, high production CNC mill/turn centers with unique bar processing capabilities and complete parts machining including all complex milling functions.  While most twin turret machines have 24 tools and no B axis, these machines are equipped with 10 axes, 2 turning spindles, 2 milling spindles with full 360° B axes, and 2 tool posts totaling 49 tools (56 optional).  Each spindle is served by a 4 axis gang tooling system consisting of X, Y and Z linear axes and full 360° B axes.  The main spindle tool post features 6 O.D. and 5 I.D. turning tools plus 12 live tools mounted in a continuous 360° B axis.  The sub spindle tool post features 5 O.D. and 9 I.D. turning tools plus 12 live tools which are mounted in a continuous 360° B axis.  QuickTECH’s Ultimate machines are offered in 42mm and 60mm bar capacities.  The sub-spindle has 30mm bar capacity on both models.

QuickTECH Robo

https://youtu.be/CTSjvewYQng?list=PLTA62J_epscrLMmY_d4Pudhun-idRCvAr

https://youtu.be/XUP9Myl3Lkw?list=PLTA62J_epscrLMmY_d4Pudhun-idRCvAr

QuickTECH’s i-42 and i-60 ROBO is a compact high production CNC mill/turn center with an integrated 6 axis high speed Mitsubishi S series robot that can load, unload and turn parts over automatically.  Positioned perfectly so it will not interfere with the operator, the robot can handle parts weighing up to 13 lbs. and uses an optional multi-tray pallet handling system for unattended automated operations.  The ROBO is equipped with 4 axes (5 optional), 1 turning spindle, 1 milling spindle and 17 total tools.  The main tool post features 6 O.D. and 5 I.D. turning tools, 3 radial and 3 axial live tool heads.  By adding the optional B axis, total tooling capacity rises to 23 with 12 live tools.  The standard unique 3 axis (4 optional) gang type vertical tool post serves the main spindle.  QuickTECH’s ROBO machines are offered in 42mm and 60mm bar capacities.

QuickTECH Eco
https://youtu.be/EgFhEHIxP9U
QuickTECH’s i-42 and i-60 Eco machine tools are compact high production CNC mill/turn centers providing single operations parts machining including all complex milling functions.  The Eco’s i-42 and i-60 models are equipped with 4 axes (5 optional with B axis), 1 turning spindle and a tailstock.  Equipped with a unique single 3 axis  (4 optional) gang type vertical tool post system consisting of X, Y, and Z axes, the main spindle tool post features 6 O.D. and 5 I.D. turning tools and 6 live tools (12 with optional B axis).  The standard live tools are 3 axial and 3 radial.  With the optional continuous 360° B axis, total live tools increase to 12.  QuickTECH’s i-42 and i-60 Eco mill/turn centers offer mass production capabilities in a cost-effective design.

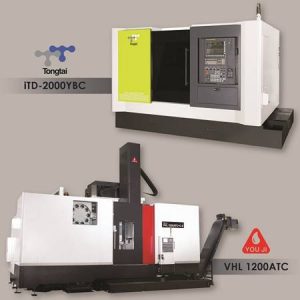

Absolute Machine Tools is on a winning streak! Once again the machine tools sold by Absolute Machine Tools have been recognized for their superior quality. This year, the Tongtai TD-2000 and the You Ji VHL1200ATC+C, VHL1600ATC+C and VHL2000ATC+C have received the prestigious 2017 Taiwan Excellence Awards. Make sure to see both these companies’ separate pages via the links displayed in the right column of this page.

The Taiwan Excellence Awards were created to encourage Taiwan industries to upgrade and incorporate innovation and value into their products. The winners are selected based on four criteria: R&D, design, quality, and marketing.

Award Winning Quality from the “A” Team

Imagine what these award winning machines could do for your business! Absolute Machine Tools has been helping machine shops and manufacturing facilities improve their production process for nearly 30 years
